Gear Shaving Cutter Tools

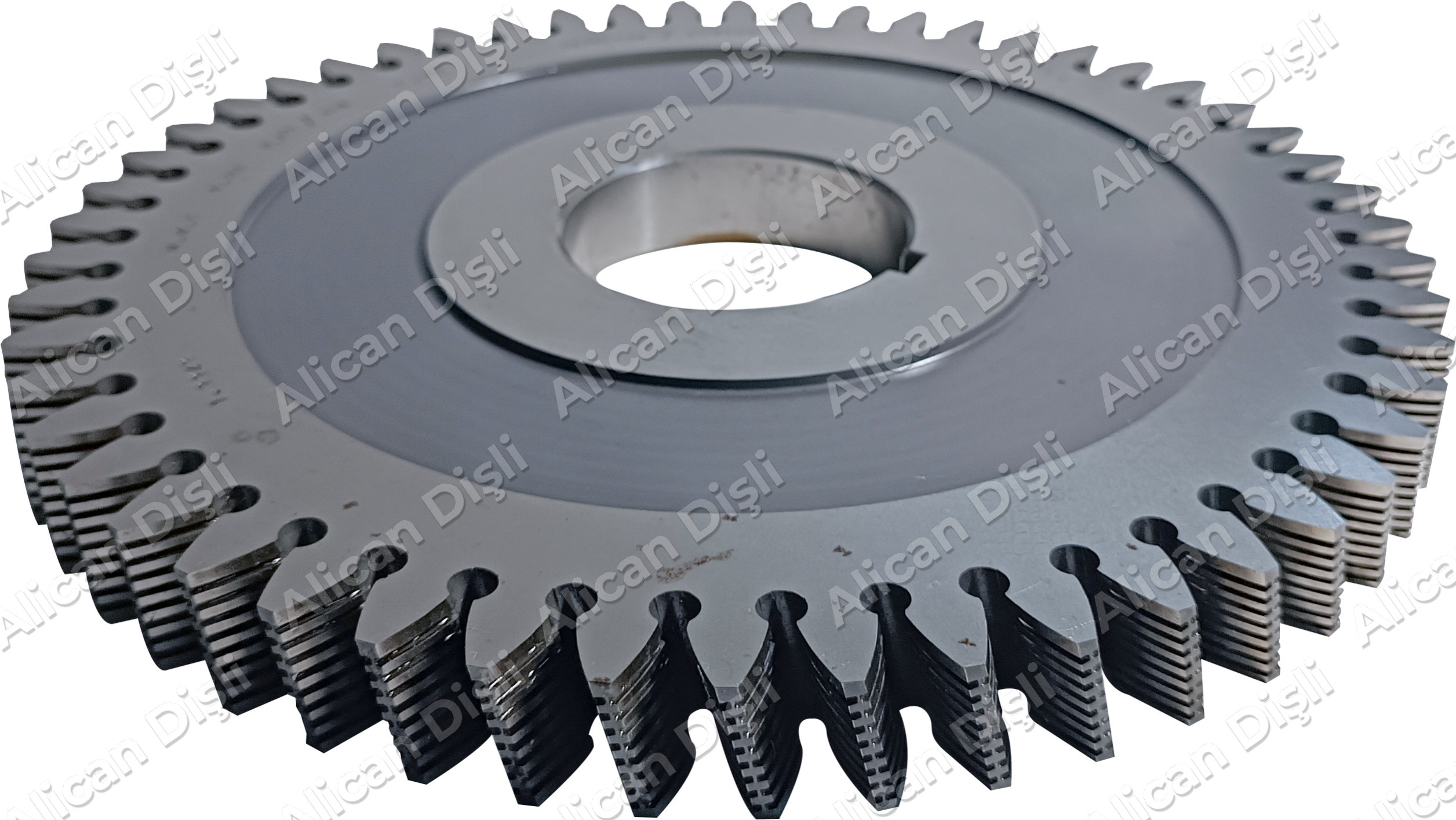

Gear shaving cutter are gear shaving tools used to increase the profile quality of the gears and  additionally ensure quiet operation. Gear shaving cutters produced within our company are manufactured by grinding their profiles in a special HURTH SRS serises gear shaving tools sharpening machine according to gear quality norms.



Nowadays,  especially almost all companies that produce transmission gears need gear shaving tools. All shaving cutters produced by our company are subjected to special measurements and controls and are used in our production line or delivered to our customers. Our company, the generally regional market leader in Gear shaving cutter, has extensive experience in the production and also use of every conceivable type of cutting tools in gear manufacturing. Alican gear machine prefers Bohler brand materials in the gear shaving cutters it produces, and performs high quality heat treatment on the products it produces.



Our company, which has decades of experience in the production and use of gear cutting tools, now serves our valued customers in this regard. In the section below you can find examples of some of the gear shaving cutter sets we produce:



Dimensions:





• Module 0,8 – 10 mm
• Helix ange B°= 0° - 35°
• Pressure Angle α =  12° - 30°
• width
• DP 16 -2
• Outside diameter





Example Module gear shaving cutter list:



M=1,5  Z: 135  α=20°   β °=15°/LEFT Ø=213,04 mm  gear shaving cutter

M=2      Z:111  α= 18°  β °= 15°/LEFT Ø=234,43 mm

M=3      Z:73    α= 16°  β °= 17°/LEFT  Ø=235,90 mm

M=3,25 Z:67    α= 21°  β °= 20°/RIGHT Ø=239,19 mm

M= 3,5  Z:63    α= 22°  β °= 14°/LEFT  Ø=235,30 mm

M=4      Z: 55   α= 20°  β °= 15°/LEFT Ø=236,96 mm

M= 4,25 Z:51   α= 23°  β °= 13°/LEFT Ø=231,72 mm

M=4,5    Z:49   α= 24°  β °= 15°/LEFT Ø=238,62 mm

M=4,75  Z:47   α= 25°  β °= 12°/LEFT Ø=239,15 mm

M=5       Z:43   α= 14,30°  β °= 15°/LEFT Ø=234,08 mm



Example DP gear shaving tools:

Dp	α	Z	β°	Helix way	Ø	Product
16	20°	127	15°	Left	212,19 mm	Gear shaving tools
18	15°	137	15°	Right	203,24 mm
15	20°	127	12°	Left	223,56 mm
14	15°	115	10°	Right	215,85 mm
13	20°	97	15°	Left	200,49 mm
12	15°	97	13°	Right	215,36 mm
